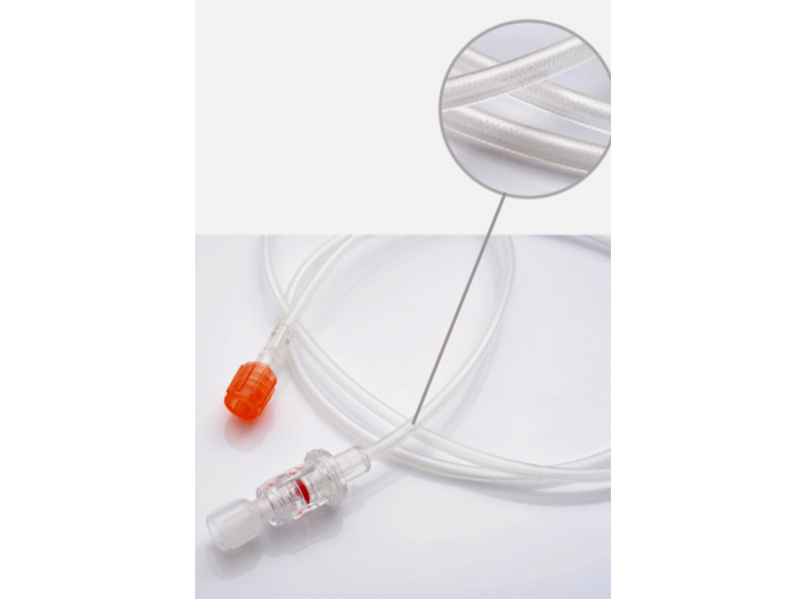

Antmed High pressure connecting tube classification:
Main specifications: 600psi, 1200psi, 25cm, 50cm, 100cm, 120cm, 150cm, etc.
Purpose of use: It is mainly used to connect the high pressure syringe and the contrast tube when doing left ventricular angiography, the maximum pressure resistance is 1200PSI.
Product composition: male protective cap, male connector, female connector, one-way valve, three-way stopcock.
Product features: A variety of materials are compounded, and there are reinforcing wires. Rotary connector, flexible and convenient operation. The product has excellent pressure and temperature resistance. Complete specifications, and can be customized tube length according to customer needs. DEHP Free. The products passed CE, FDA and other multiple certifications.
Antmed High Pressure Connecting Tube HBR025, HBR050, HBR100, HBR150…

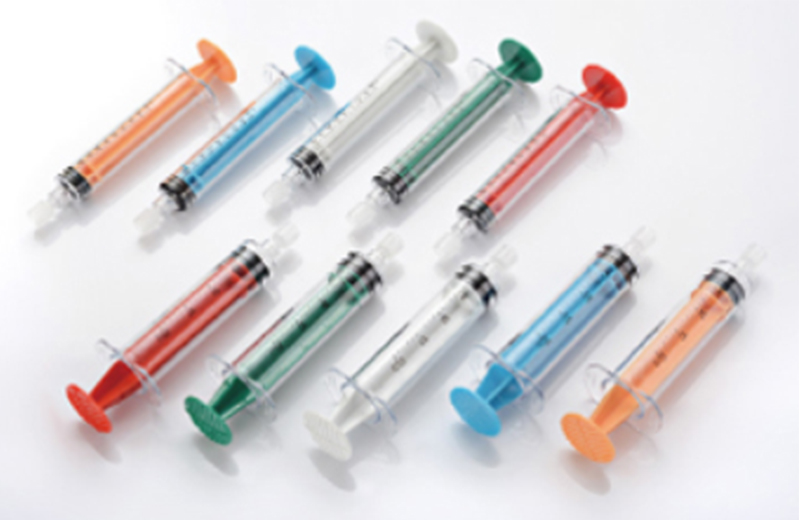

Color syringe classification:
Capacity: 1mL/ 3 mL/ 6mL/ 8mL/10 mL/ 12mL/ 20mL/ 30mL/ 60mL
Purpose of use: It is suitable for injection of liquid medicine or contrast agent to patients in cardiovascular and interventional operations in the medical sector.
Product composition: piston rod, syringe barrel, rubber plug, male connector.
Product features: A variety of specifications to meet user requirements. A variety of colors are easy to distinguish the liquid medicine and shorten the operation time. Humanized handle design, easy to operate. The printed scale is clear and accurate.
Antmed Color Syringe 1mL, 3mL…

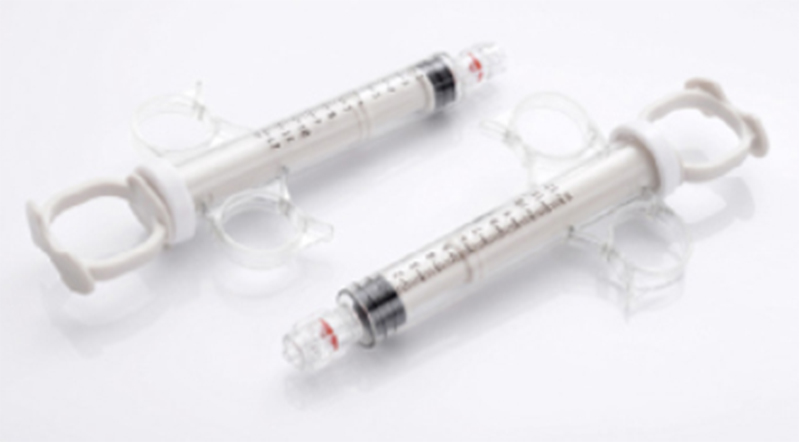

Control syringe classification:
Capacity: 1mL/ 3 mL/ 6mL/ 8mL/10 mL/ 12mL/ 20mL/ 30mL/ 60mL
Product use: Also known as three-ring syringe, it is suitable for injection of liquid medicine or contrast agent to patients in cardiovascular and interventional operations in the medical sector.
Product composition: piston rod assembly, end cap, jacket assembly, rubber plug, male connector.
Product features: Humanized handle design, easy to operate, can be operated with one hand. The tube wall is clear and transparent, the inner surface is smooth, and it is easy to push. Limiting device, safe and reliable, pressure resistance 500psi. The printed scale is clear and accurate.
Antmed Control Syringe TR0008, TR0012

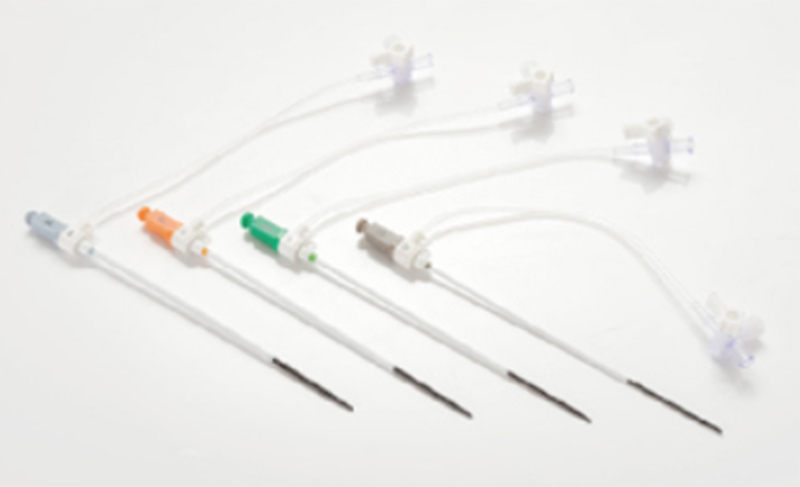

Introducer set classification:
Specifications: Long sheath, Short sheath; 4F, 5F, 6F, 7F, 8F, 9F(1F=0.33mm)
Purpose of use: During interventional operations, guide medical catheters, balloons and other instruments into vascular lesions.
Product composition: catheter sheath, dilator, puncture needle, guide wire.
Product features: The wedge-shaped smooth transition between the dilation tube and the sheath is convenient for the insertion of the catheter sheath. With a hemostatic valve device, it can prevent blood return and facilitate the introduction of the guide wire. Soft cannula material provides comfortable indwelling effect and less complications. The puncture needle has an ultra-thin wall and a large inner diameter, and the guide wire can pass through smoothly. The unique angle of the needle tip makes the puncture sharp.

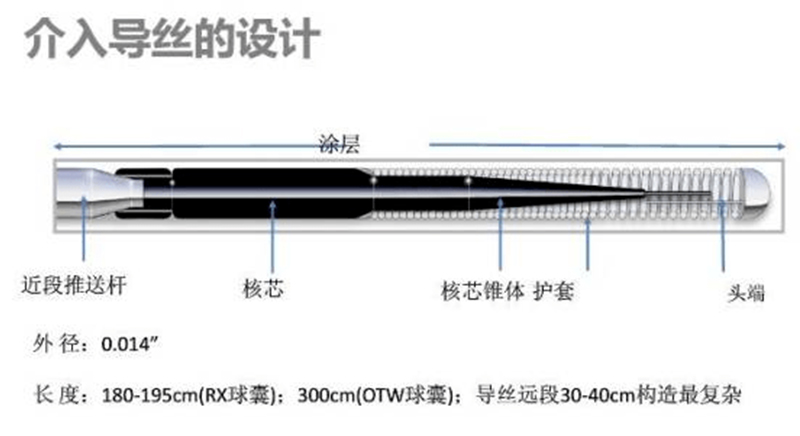

Guide wire classification:
Diameter: 0.035”, 0.038”, 0.014”, 0.018”
Length: 30cm/150cm/190cm/260cm/300cm
Distal Shape: Straight, J
Performance: ordinary steel wire guide wire, super smooth guide wire, super hard guide wire Lunderquist Amplatz.
Catheter classification:
Purpose of use: angiography catheter, balloon dilatation catheter, thrombolysis catheter, guide catheter
Different diameters: microcatheter, coaxial catheter
Features: hardness, elastic memory, torque, following line, visibility, guide wire passability
At present, the angiography catheter has been pre-plasticized, and the shape of the catheter tip can be simply divided into: straight, single-curved, double-curved, reverse-curved, and spiral. Different models can be selected according to the shape of blood vessels in different parts.

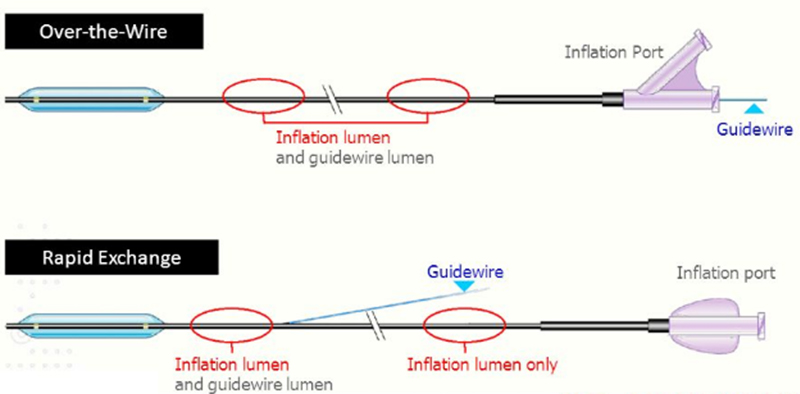

Balloon classification:
Overall exchange balloon (OTW – over the wire)
Rapid exchange balloon (monorail)
Antmed PTCA accessories products are Latex free, DEHP free. Products passed FDA, CE, ISO certifications. For more information about our products and services, please contact us at info@antmed.com
