PTCA is the abbreviation for percutaneous transluminal coronary angioplasty (usually radial or femoral). PTCA broadly covers all coronary interventional treatments. But in a narrow sense, people often refer to traditional coronary balloon dilatation (POBA, full name Plain old balloon angioplasty). Balloon dilatation is the basis of all coronary interventional treatment techniques. In order to reduce the restenosis rate of coronary arteries, it is often necessary to one or more stents are placed, and antiplatelet drugs are used long-term.
Interventional therapy is a minimally invasive treatment using modern high-tech means, that is, under the guidance of medical imaging equipments, special catheters, guide wires and other precision instruments are introduced into the human body to diagnose and locally treat internal diseases. Interventional therapy uses digital technology to expand the doctor’s field of vision. With the help of the catheter, the guide wire extends the doctor’s hands. Its incision (puncture point) is only the size of a grain of rice. Diseases with poor curative effect that must be treated by surgery or medical treatment, such as tumors, hemangioma, various bleeding, etc. Interventional therapy has the characteristics of no operation, small trauma, quick recovery and good effect. It is the development trend of future medicine.
PTCA products include balloon inflation device, three-way manifold, control syringe, color syringe, high pressure connecting tube, three-way stopcock, hemostasis valve, toque device, insertion needle, introducer set, guide wire, and punture needle. Single use. These products are extracorporeal accessories for assisting angiography, balloon dilation and stent implantation during percutaneous transluminal coronary angioplasty.
PTCA products are mainly used in interventional radiology and operating rooms.
PTCA products classification:
Basic Materials - Needles, Catheters, Guidewires, Sheaths, Stents
Special Materials - Inflation Device, 3-way Stopcock, Manifold, Pressure Extension Tube, Hemostasis Valve(Y-connector), Guide Wire, Introducer, Toque Device, Color Syringe, Control Syringe, Vascular Occluder, Filter, Protective Umbrella, Umbrellas, Embolic materials, Catches, Baskets, Rotary cutting catheters, Cutting balloons

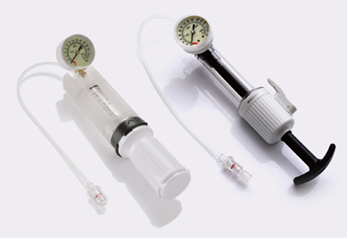

Inflation device classification:
Maximum pressure value: 30ATM, 40ATM
Syringe capacity: 20mL, 30mL
Purpose of use: used in PTCA surgery, to pressurize the balloon dilatation catheter, so as to expand the balloon to achieve the purpose of dilating blood vessels or placing stents in the blood vessels.
Product composition: piston rod, jacket, pressure gauge, high-pressure connecting tube, high-pressure rotary connector.
Product features: Pointer pressure gauge, accurate and stable reading. The jacket is printed with scales for easy comparison. There is a minimal amount of air buffer at the front of the jacket. Easy to operate, with safety locking device, precise pressure control, and quick pressure relief. The appearance is simple and generous. Ergonomic design, easy to operate.
Antmed Inflation Device ID1220, ID1221

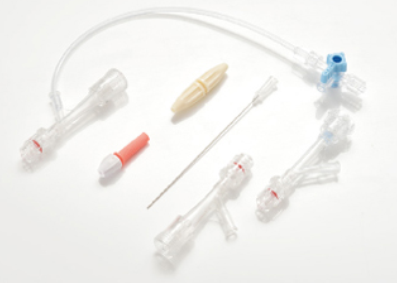

Hemostasis valve classification:
l Push type
l Screw type
Purpose of use: When introducing a balloon catheter and changing guide wires, the Y-connector can be used to reduce blood backflow. No matter whether the balloon catheter is in a blood vessel, the Y-connector can be used to inject contrast agents and monitor pressure. Or through the guide catheter.
Product composition: Y-connector, toque device, insertion needle
Features: Excellent pressure resistance, good sealing, tight fit. Easy to operate, can be operated with one hand. Complete specifications (large hole, normal hole).
Antmed Hemostasis Valves HV2113, HV220D00, HV221D01, HV232D02, HV232E00…

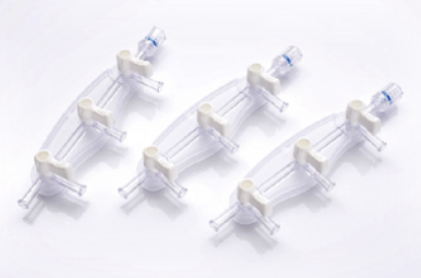

Manifold classification:
Single, double, triple (MDM301), quadruple, right open, left open
Purpose of use: It is used for the connection, conversion and detection of pipelines when diverting various liquids in the blood vessels of patients in angiography or vascular surgery. Commonly used 3-way manifold.
Product composition: valve core, valve seat, rubber ring, rotatable conical connector.
Product features: The handle can be rotated freely and can be operated with one hand. Good sealing, can withstand pressure of 500psi. Various specifications can be freely combined.
One-way to two-way, there is a one-way valve in the side hole to prevent the mixing of incompatible drugs. Reduce the pollution of the infusion system and reduce the workload.
Antmed PTCA accessories products are Latex free, DEHP free. Products passed FDA, CE, ISO certifications. For more information about our products and services, please contact us at info@antmed.com
Post time: Oct-21-2022
