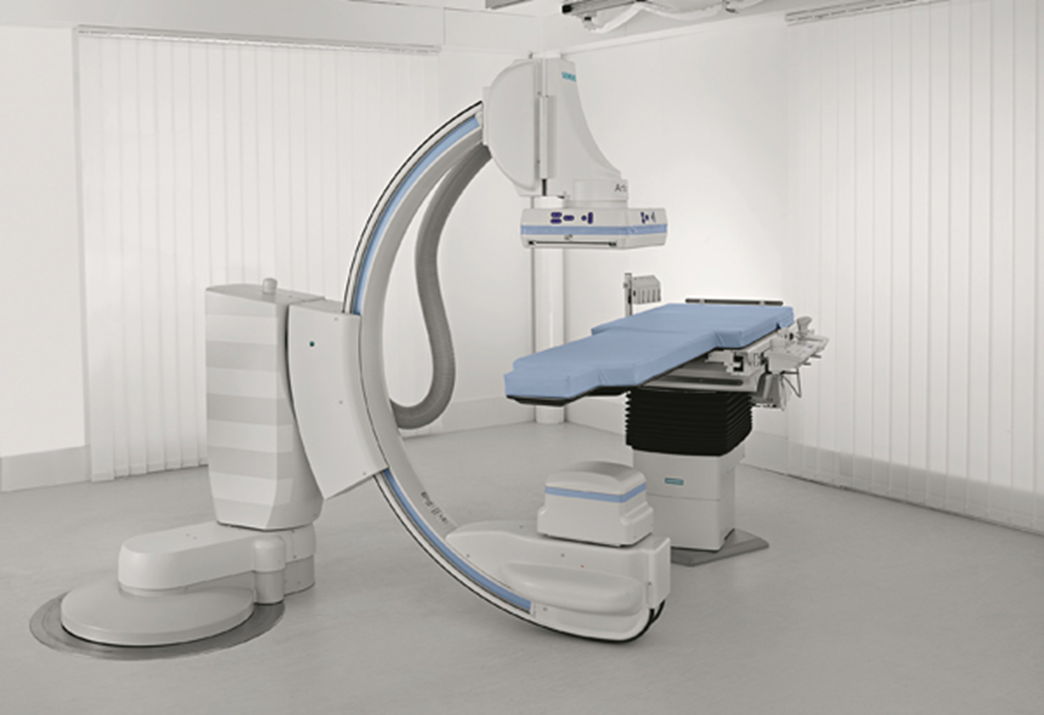

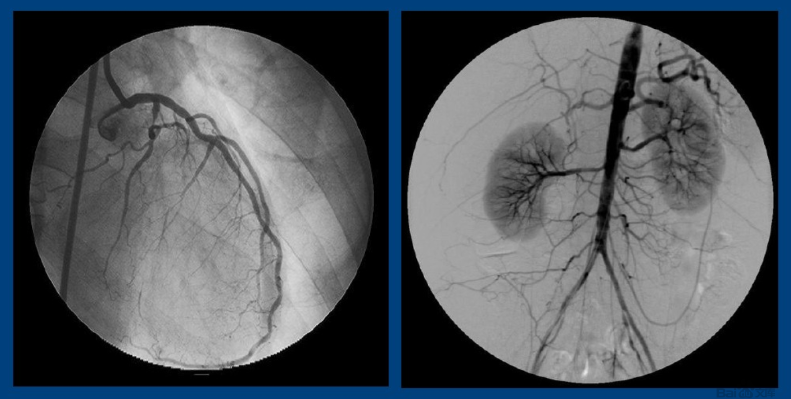

Digital Subtruction Angiography(DSA) is a new examination method combining computer with conventional X-ray angiography. Take an image (mask image) of the same part of the human body when no contrast media is injected, take an image (image making or filling image) after the input of contrast media, and subtract the two images through image processing to obtain the subtracted image. In the subtracted image, background images such as bones and soft tissues are eliminated, leaving only images of blood vessels containing contrast media. It is often used to screen or treat vascular stenosis, and to diagnose various diseases by angiography of head and neck, heart and big vessels, visceral vessels and limbs.
Contrast media is a chemical product injected (or taken) into human tissues or organs to enhance the effect of image observation. The density of these products is higher or lower than that of the surrounding tissues, and the contrast formed is displayed with some instruments. Such as iodine preparation and barium sulfate commonly used for X-ray observation. The characteristic of iodine is that it does not penetrate X-ray, so when taking X-ray films, we can use the distribution of iodine in the body to produce contrast; Or make the blood vessels and soft tissues that cannot be seen on the X-ray films clear and shadow, so as to help doctors make reliable diagnosis. Contrast media can be taken orally or injected into arteries or veins and quickly distributed in the vascular system. Contrast media will not be metabolized (used up) or changed in the body. They will be eliminated from the body through the urinary system.
DSA high-pressure injector can ensure that the contrast media can be injected into the patient’s cardiovascular system in a short period of time, and the tested part can be filled with high concentration to take a better contrast image. At the same time, it can also coordinate the contrast media injection, host exposure and film changer, thus improving the accuracy of photography and the success rate of radiography.
Below is Shenzhen Antmed Co., Ltd. ImaStar ASP Single Head Contrast Media Delivery System for DSA/Angio:

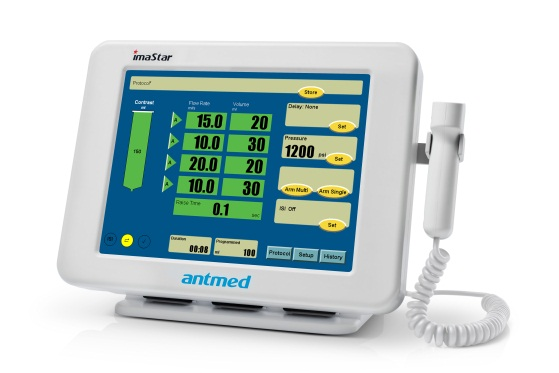

Antmed ImaStar ASP Single Injection System is a programmable single-head injection system. It is used to deliver accurate doses of contrast media to patient during DSA angiography. ImaStar ASP injector are produced with advanced technologies and highlighted parameters. It provides reliable performance, safe patient experience and price affordability in Cathlab.
Main Parameters:
Pressure limit 1200psi
Flow rate 0.1~45ml/s
Auto filling rate 8.0ml/s
Injection delay 0.0-900sec
Injection phases 6
Injection programs 2000
Syringe volume 150ml
Power supply 100-240VAC, 50/60Hzm, 500VA
Multiple language user interface
Bluetooth Communication: Between the injector and console unit it’s wireless bluetooth communication, no cables required.

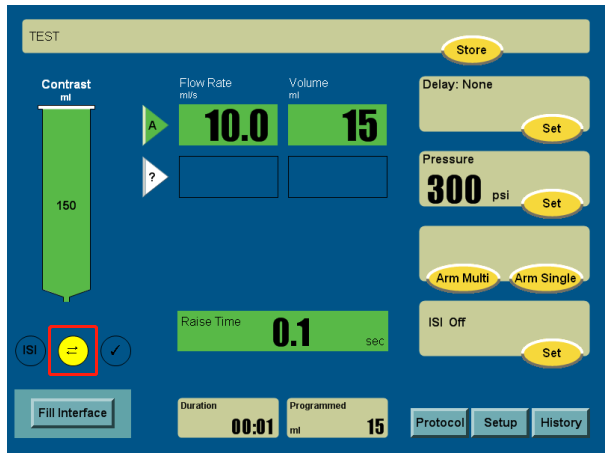

Smart Design: Automatic head angle detection to prevent mis-operation, double color touch screens, allow flexible operation at either control room or scan room, simple user interface highlights key information to facilitate setup and injections

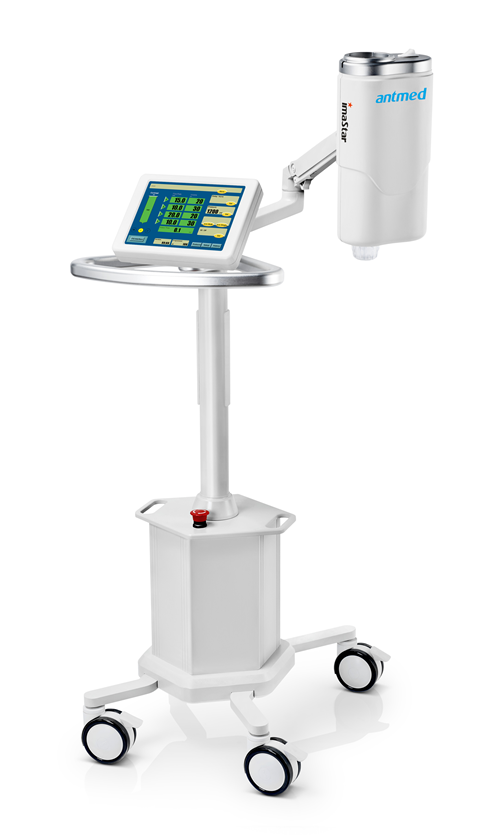

Cantilever: Large cantilever allows for extendd reach to ensure smooth workflow. 28”(27cm) swing radius 270 degree angle and 11”(28cm) vertical height adjustment range.
Heat Maintainer: Syringe heater ensures contrast maintains is at ideal temperature.
Safety: There is a double confirmation feature with separate prompts to confirm air purgeing and injection ready status before any injection. Automatically slow down the injection when approching to pressure limit. Injection stops when pressure limit is reached. Alerts with both light and sound. Waterproof design inside the head to minimize damage from contrast media and saline leakage.
Certifcates: CE, FSC and ISO 13485.
Antmed ImaStar ASP Injection System is a single syringe contrast delivery system needed for advanced clinical imaging procedures such as Angio, Cardiac, CTA as well as routine Injection. It is available for different modes/protocols and can be configured on the injector for each of the applications –Angio/Cardiac/CTA/Injection. By using ImaStar ASP injector with multiple phase protocols allows you to optimize the contrast injection for vascular applications.
For more information about our products and services, please contact us at info@antmed.com.
